2025 Carmel Bach Festival Early Keyboard Gallery
Copyright © 2025 CBH
2025 Carmel Bach Festival Early Keyboard GalleryCopyright © 2025 CBH |
|

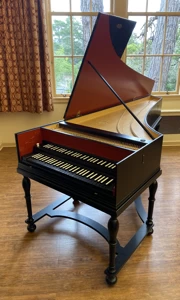

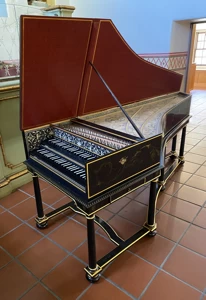

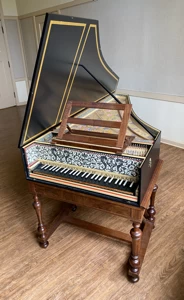

| INSTRUMENT | The Flemish Single Harpsichord after 1635 Ruckers | The Flemish Double Harpsichord after 1624 “Colmar” Ruckers | The German Double Harpsichord after 1722 Johann Heinrich Gräbner |

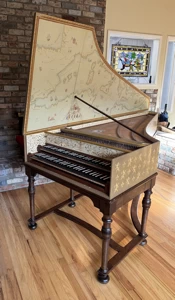

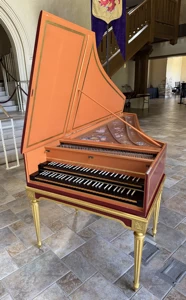

The French Double Harpsichord after 1711 Donzelague | The French Double Harpsichord after 1770 Taskin |

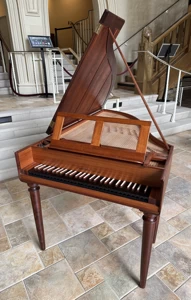

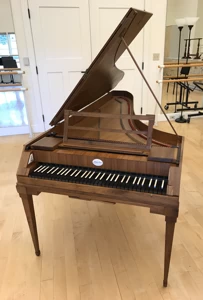

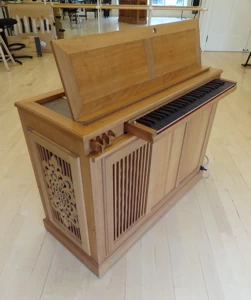

The Lautenwerk | The Fortepiano after Mozart’s Geburtshaus Walter c1782 | The Continuo Organ |

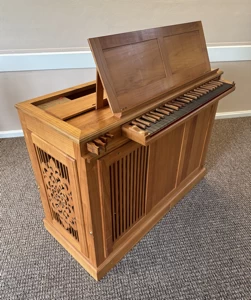

The Continuo Organ |
||||||||||||||||||
| PICTURE |
|
|
|
|
|
|
|
|
|
||||||||||||||||||
| DISPOSITION | 2 x 8´, 1 x 4´, Stop registers worked by levers on wrestplank |
2 x 8´, 1 x 4´, buff on back 8´ Stop registers worked by levers on wrestplank |
2 x 8´, 1 x 4´, buff on front 8´ Stop registers worked by wooden levers on wrestplank |
2 x 8´, 1 x 4´, buff on back 8´ Stop registers worked by levers through nameboard |
2 x 8´, 1 x 4´, buff on front 8´ Stop registers worked by brass levers in keywell |
Double strung GG–f' with 4´ to e, then single strung remainder Partial register worked by iron lever on wrestplank |
Double strung up to g', then triple strung | 8´, 4´, 2´, 11/3´ Divided stop registers |
8´, 4´, 2´, 22/3´ Divided stop registers |
||||||||||||||||||
| RANGE | One 52-note keyboard with ebony naturals, bone-slipped stained cherry sharps, & pearwood arcades BB–d''' |
Two 55-note reverse keyboards with bone-slipped sharps GG,AA–d''' |
Two 58+1-note reverse keyboards with bone-slipped sharps FF–d''' |
Two 61-note reverse keyboards with bone-slipped sharps FF–f''' |
Two 61+1-note reverse keyboards with bone-slipped stained pearwood sharps FF–f''' |
One 56+2-note reverse keyboard with ebony naturals, bone-slipped fruitwood sharps, trefoil fronts GG–d''' |
One 63-note reverse keyboard with bone-slipped ebony sharps, & gilded ebony keyfronts FF–g''' |
One 54-note reverse keyboard with cherry sharps C–f''' |
One 54+1-note reverse keyboard with snakewood sharps C–f''' |
||||||||||||||||||
| TRANSPOSITION | non-transposing A415 | A415/A440 | A415/A440 | A392/A415/A440 | A415/A440 | A392/A415/A440 | A430 A440 capable |
A415/A440/A466 | A415/A440 | ||||||||||||||||||
| STRINGING | Strung in Birkett Red & Yellow Brass, and P-wire | Strung in Malcolm Rose Red & Yellow Brass, and Soft Iron wire | Strung in Birkett Red & Yellow Brass, and P-wire | Strung in Malcolm Rose Red & Yellow Brass, and Soft Iron wire | Strung in Malcolm Rose Red & Yellow Brass, and Soft Iron wire, zither pins | Strung in silver spun fiber core, & gut, historic pins | Strung in Malcolm Rose Yellow Brass, and “B” Iron wire, zither pins | All wooden pipes | All wooden pipes | ||||||||||||||||||
| ACTION | Tapered pearwood jacks with Canada goose quill plectra | Tapered pearwood jacks with Delrin plectra, working in leathered registers | Tapered pearwood jacks with Canada goose quill plectra | Tapered pearwood jacks with Delrin plectra, leathered registers | Tapered pearwood jacks with Canada goose quill plectra, working in leathered registers | Pearwood jacks with Delrin plectra |
Viennese action with metal kapsels, complete backcheck Knee-operated dampers and moderator |
Mechanical | Mechanical | ||||||||||||||||||
| CONSTRUCTION | Poplar case, Italian spruce soundboard, beech & cherry bridges |
Lime case, lid & bottom, Italian alpine spruce soundboard, pearwood bridges & rails | Ponderosa pine case, lid & bottom, Norway spruce soundboard, maple bridge & rails | Lime case, lid & bottom, Italian alpine spruce soundboard, walnut bridges & rails | Tulip poplar case, lid & bottom, Sitka spruce soundboard, pearwood bridges & nuts, beech rails | Pine case, cherry veneered exterior, cherry frame & panel lid, Sitka spruce soundboard | Walnut veneered case, solid walnut lid, Sitka spruce soundboard | European cherry case Self-contained 110V blower |
European cherry case Self-contained 110V blower |
||||||||||||||||||
| DECORATION | Soundboard painting by Janine Johnson Gilded rose Black case interior & exterior, bright mouldings, gilded lid bands Flemish papers to keywell & case rim |
Soundboard painting by Varnish craquelure Gilded rose Hand-printed Flemish |
Soundboard rose |
Soundboard painting by Adrian Card after the original instrument Parchment rose Handpainted case, cast brass hinges Hand-painted papers to keywell and case rim Lid painting map of Mediterranean by Adrian Card inspired by C17th & 18th originals |
Soundboard painting by John Phillips Chinese red exterior, salmon interior Glided case mouldings Gilded bands to case exterior & lid interior Gilded cast soundboard rose |
Gilded soundboard rose |
French polished case Scrimshaw plaques for nameboard inscription & keycheek ornament |
Pierced panels to sides & back | Pierced panels to sides & back | ||||||||||||||||||
| STAND & ACCESSORIES | Eight leg table stand in Claro walnut with concealed music drawer Matching music desk & lid stick |
Eight leg table stand Wenge music desk & lid stick |
Six leg table stand Simple travel stand Matching maple music desk |
Eight-leg table stand in walnut Walnut music desk & lid stick |
Seven leg Louis XVI-style table stand Cherry music desk |
Five screw-in turned legs Stained pine music desk |
Five square tapered legs | Instrument rests directly on floor | Instrument rests directly on floor | ||||||||||||||||||
| SIGNATURE | DOMINIC FAVIA FECIT CALIFORNIA [2021] | KEVIN FRYER • SAN FRANCISCO • 1998 | JOHN MURDOCH PHILLIPS BERKELEY CALIFORNIA ANNO 2010 |
KEVIN FRYER • SAN FRANCISCO • 2004 | JOHN PHILLIPS BERKELEY 1978 |
ANDEN HOUBEN • FECIT • 2004 |
PHILIP BELT [Op26 1981] |
GC KLOP GARDEREN |
[unsigned — GC KLOP GARDEREN] |
||||||||||||||||||
| PROVENANCE | Private ownership, |
Carmel Bach Festival | Private ownership, Palo Alto, CA |
Private ownership, Jackson, WY |
MusicSources | Private ownership, New York, NY |
Private ownership, New York, NY |
San Francisco Bach Choir | UC Berkeley | ||||||||||||||||||
| CONCERT USE Subject to change |
Rehearsal & coaching instrument; Wed Mission Concert, The Crown of Creativity | Sun concert; Tue Foyer; Thu Twilight in the Cathedral; Best of the Fest | Mon & Fri Intermezzi | Rehearsal instrument | Mon concert | Wed Foyer | Thu Foyer |
Sat, Sun & Tue concerts; The Crown of Creativity; Best of the Fest | Mon & Fri Intermezzi; Wed Mission Concert; VBA Showcase;Best of the Fest | ||||||||||||||||||
| All early keyboards prepared throughout the Carmel Bach Festival season by Carey Beebe. | |||||||||||||||||||||||||||
 |
|
||||||||
